Home › SCM MM36 36" Bandsaw

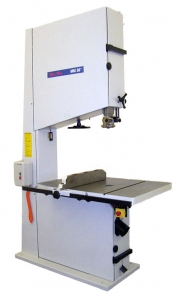

SCM MM36 36" Bandsaw

Sat, 2011-10-15 20:34 — tomg
SKU: SCM MM36

Features

  • Triple-boxed-beam spine and neck, 3/16” formed steel
  • Magnetic starter with overload protection
  • 0.5” thick cast-iron wheels, internally balanced
  • Quick-change tongue-and-groove rubber tires
  • Cast iron table with quick tilting to +45° and -10°
  • Cast iron fence, fully adjustable for drift
  • 0.75” Miter slot
  • Upper and lower doors open independently
  • Individual safety micro-switches at upper and lower doors
  • “Soft-touch” foot brake with adjustable magnetic stop switch
  • Upper and lower European-style roller guides
  • Universal guide post, accepts most guide systems
  • 1.25” steel guidepost with chain-and-sprocket raising/lowering
  • Cast iron through-block for guidepost support
  • Telescopic blade guard
  • Tool set & owner’s manual
Specifications
  • Table size: 32” X 46”
  • Table height: 38.75”
  • Table tilt: -10 degrees/ +45 degrees
  • Blade speed: 5,000 fpm
  • Blade capacity: 0.5”-2.0”
  • Suggested blade length: 244”
  • Maximum cutting height: 21.5”
  • Maximum cutting width: 35” left of blade
  • Machine weight (net): 1,584lbs.
