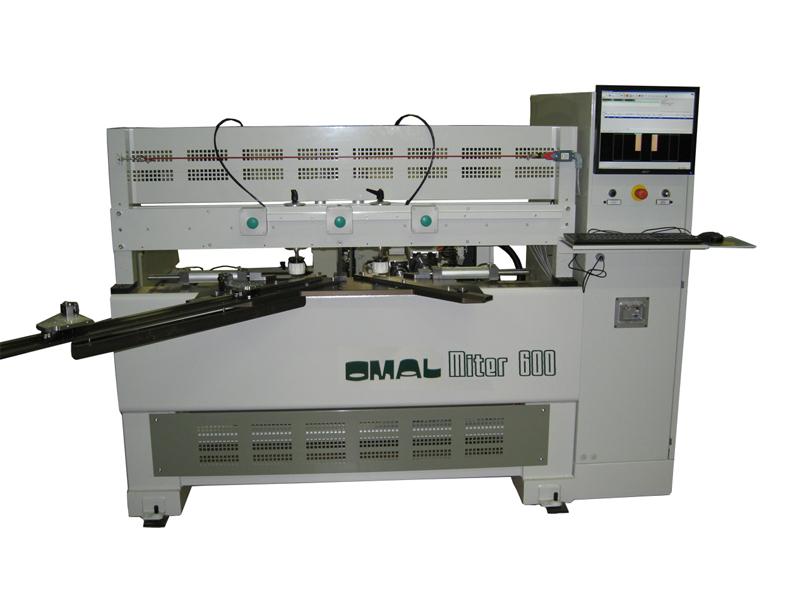

The OMAL Miter 600-2RT is a CNC Profiling Machine designed to produce mitered mortise and tenon joint for cabinet door stiles and rails. This PC controlled machine is equipped with a graphical interface for machine operation. A powerful feature of this interface allows complete flexibility in controlling the tool path. This programming flexibility is critical in producing a high quality joint that is strong and free of chips. The working head is equipped with two horizontal router motors, a main spindle at 9.5HP and a mortise spindle at 3HP. The work table is divided into two zones for pendulum processing for maximum production throughput. The machine is equipped with optional dual stops for precision dimension control for both stiles and rails in sequence.

Technical Specifications

• Working head with 2 stations: Two RH Routers
• 3 CNC axis: horizontal X & Y plus vertical Z
• Work table divided into two zones with 45 degree fence
• The clamp zone has an offset reference for narrow profiled pieces
• Optional sizing fence for rails
• Special marcos for each Mortise and Tenon length control and position
• Special tooling for chip free cuts and beveled tenons
