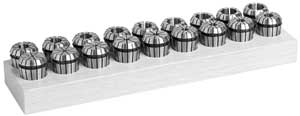

ER collet sets

Sat, 2011-10-22 19:02 — tomg
SKU: ER Collet Sets

Features:

  • Inch and Metric Sizes

  • All surfaces precision ground for maximum accuracy

  • Maximize your milling chuck capability



ER Inch Size Collet Sets


Part No. Desc. Pcs. Set Range Shank Size
04208(set) ER11 7 1/16 – 1/4" by 32nds 1/32 - 1/4"
04209(set) ER16 10 3/32 – 3/8" by 32nds 1/16 - 3/8"
04210(set) ER20 12 5/32 – 1/2" by 32nds 1/8 - 1/2"
04211(set) ER25 16 5/32 – 5/8" by 32nds 1/8 - 5/8"
04212(set) ER32 18 7/32 – 3/4" by 32nds 3/16 - 3/4"
04213(set) ER40 13 1/8 – 1.0" by 16ths 1/8 - 1"

     ER Metric Size Collet Sets



Part No. Desc. Pcs. Set Range Shank Size
04200(set) ER8 9 1 - 5 by 0.5mm 0.5 – 5mm
04201(set) ER11 13 1 - 7 by 0.5mm 0.5 – 7mm
04202(set) ER16 10 1 - 10 by 1mm 0.5 – 10mm
04203(set) ER20 12 2 - 13 by 1mm 1 – 13mm
04204(set) ER25 15 2 - 16 by 1mm 1 – 16mm
04205(set) ER32 18 3 - 20 by 1mm 2 – 20mm
04206(set) ER40 23 4 - 26 by 1mm 3 – 26mm
04207(set) ER50 17 6 - 34 by 2 mm 5 – 34mm
